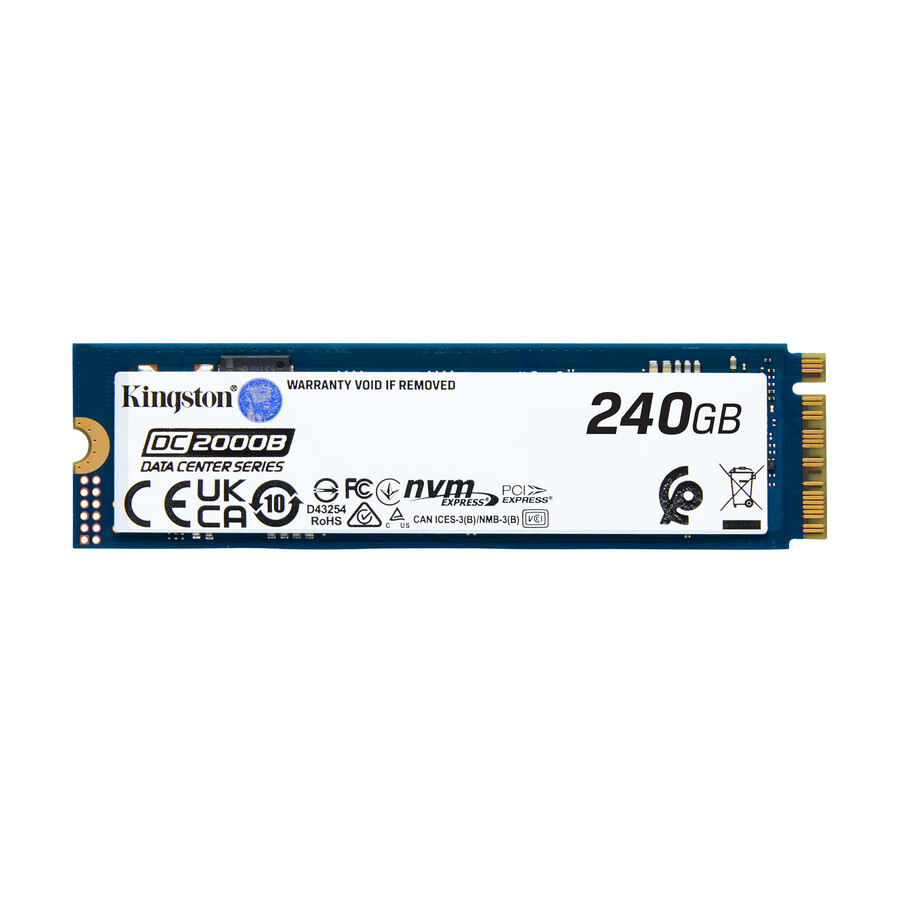

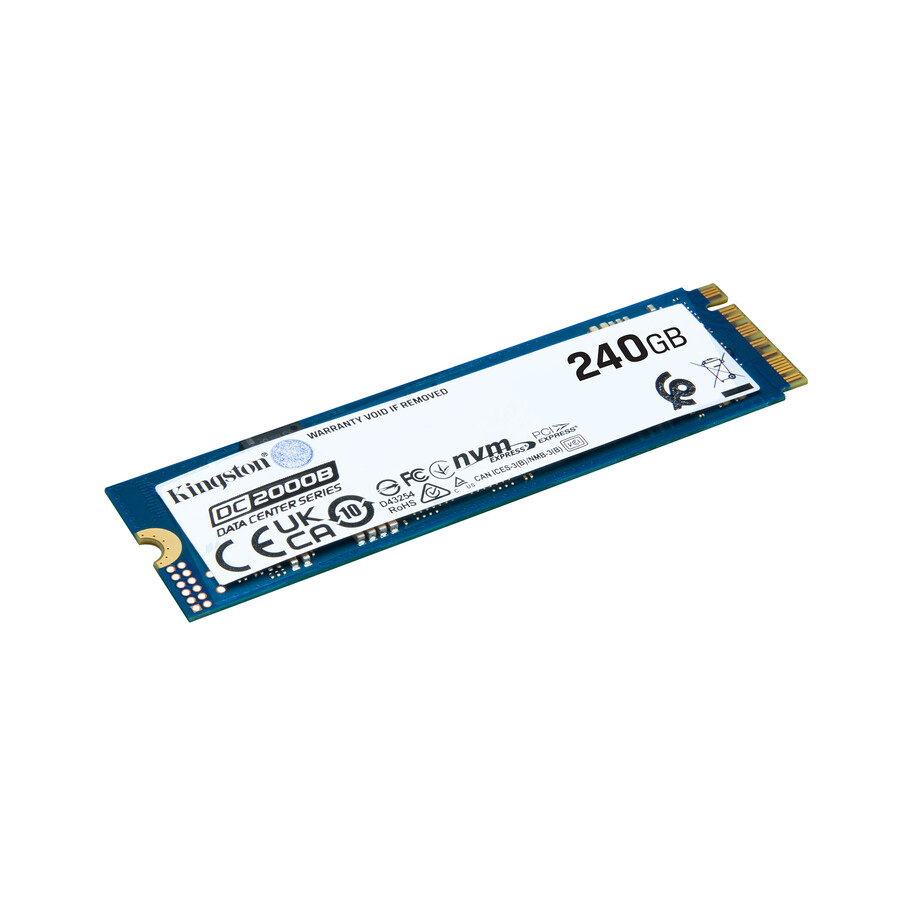

DC2000B PCIe 4.0 NVMe M.2 SSD – capacity=240GB options=non-heatsink

Enterprise class for server applications

capacity=240GB
options=non-heatsink

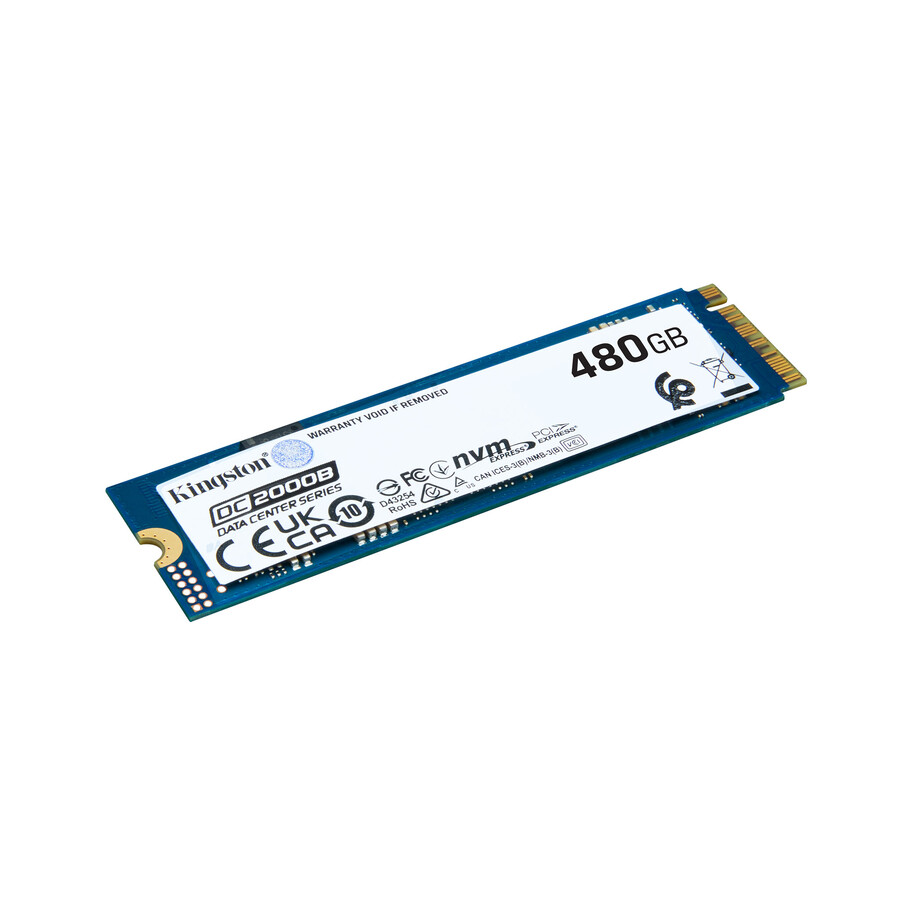

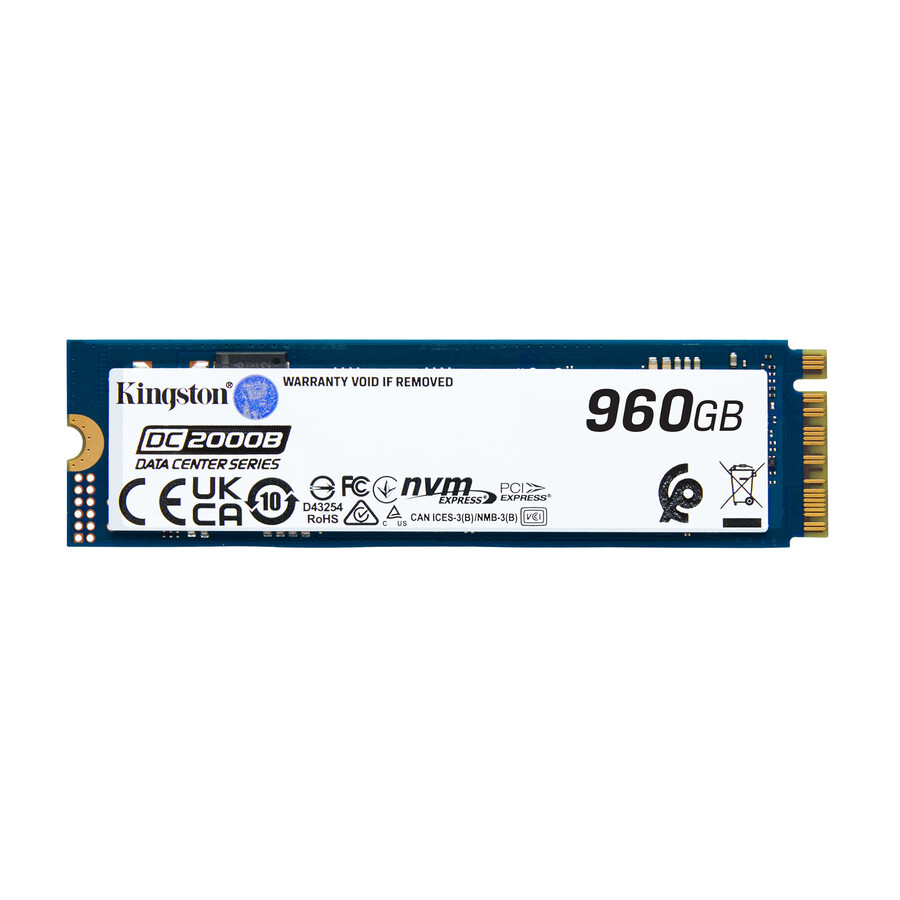

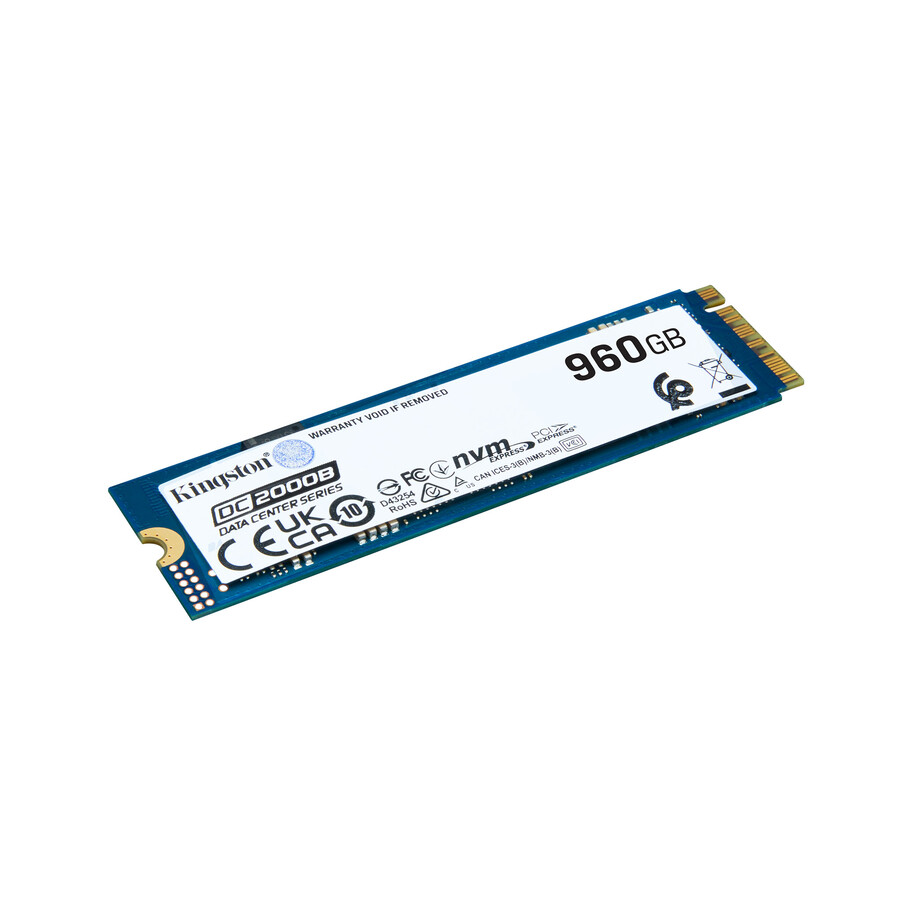

Kingston’s DC2000B SSD is a high-performance boot drive designed for data centers using the latest Gen 4×4 PCIe interface with 3D TLC NAND. With low latency, IOPS consistency and hardware-based power loss protection, it ensures reliability and efficiency. Available in capacities of up to 960GB, it’s ideal for enterprise server boot and caching applications.

Form factor M.2 2280 Interface PCIe 4.0 x4 NVMe Capacities{{Footnote.N47164}} 240GB, 480GB, 960GB NAND 3D TLC Sequential read/write 240GB – 4500/400 MBs
480GB – 7000/800 MBs
960GB – 7000/1300 MBs Steady-state 4k read/write{{Footnote.N47723}} 240GB – 260000/18000 IOPS
480GB – 530000/32000 IOPS
960GB – 540000/47000 IOPS Total bytes written (TBW){{Footnote.N52588}} 240GB – 175 TBW
480GB – 350 TBW
960GB – 700 TBW Latency read (avg) 240GB-960GB: 70µs Latency write (avg) 240GB – 53µs
480GB – 29µs
960GB – 20µs Power loss protection (power caps) Yes Enterprise SMART tools Reliability tracking, usage statistics, SSD life remaining, wear levelling, temperature Endurance 240GB — (0.4 DWPD/5yrs){{Footnote.N56837}}
480GB — (0.4 DWPD/5yrs){{Footnote.N56837}}
960GB — (0.4 DWPD/5yrs){{Footnote.N56837}} Power consumption 240GB: Average read: 2.97W Average write: 4.02W Max read: 3.01W Max write: 4.09W
480GB: Average read: 3.22W Average write: 5.60W Max read: 3.29W Max write: 5.77W

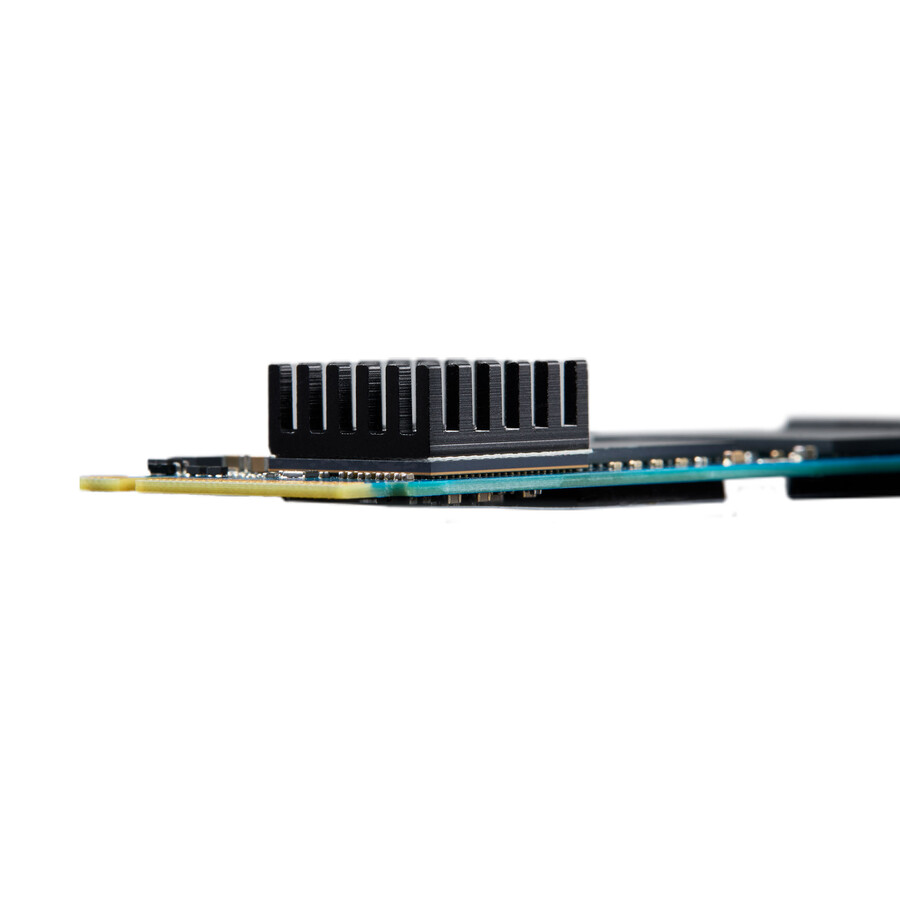

960GB: Average read: 3.26W Average write: 7.36W Max read: 3.36W Max write: 7.80W Storage temperature -40°C ~ 85℃ Operating temperature 0℃ ~ 70℃ Dimensions Heatsink:
80mm x 22mm x 8.3mm

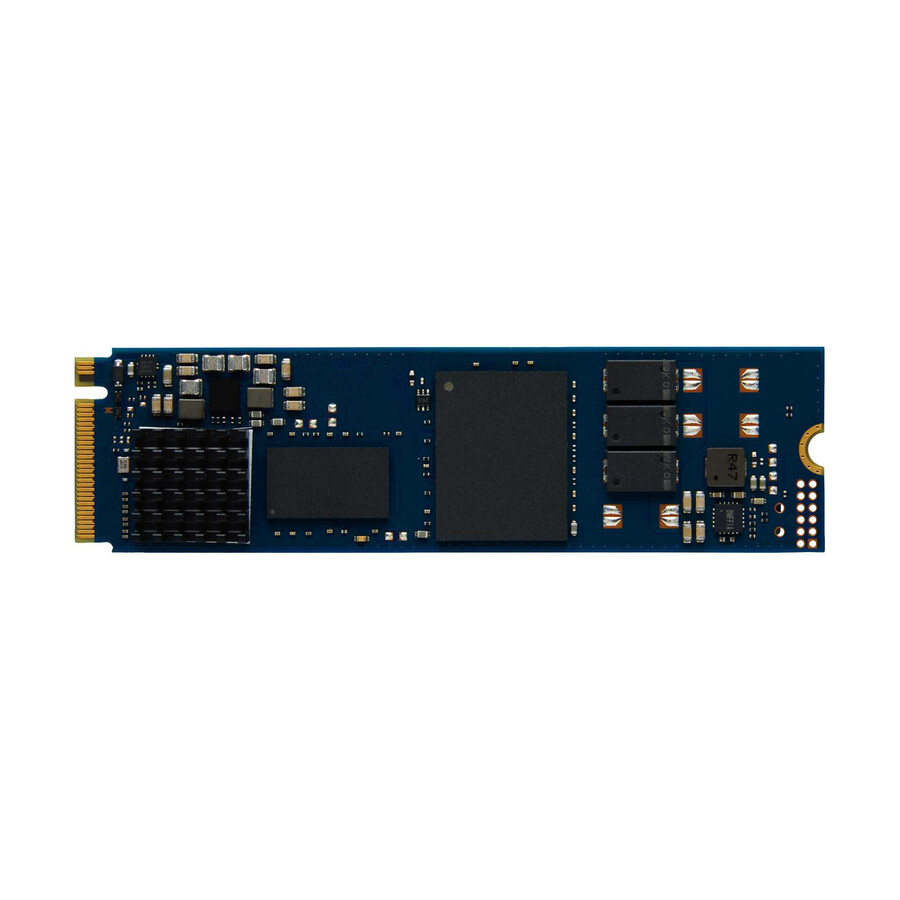

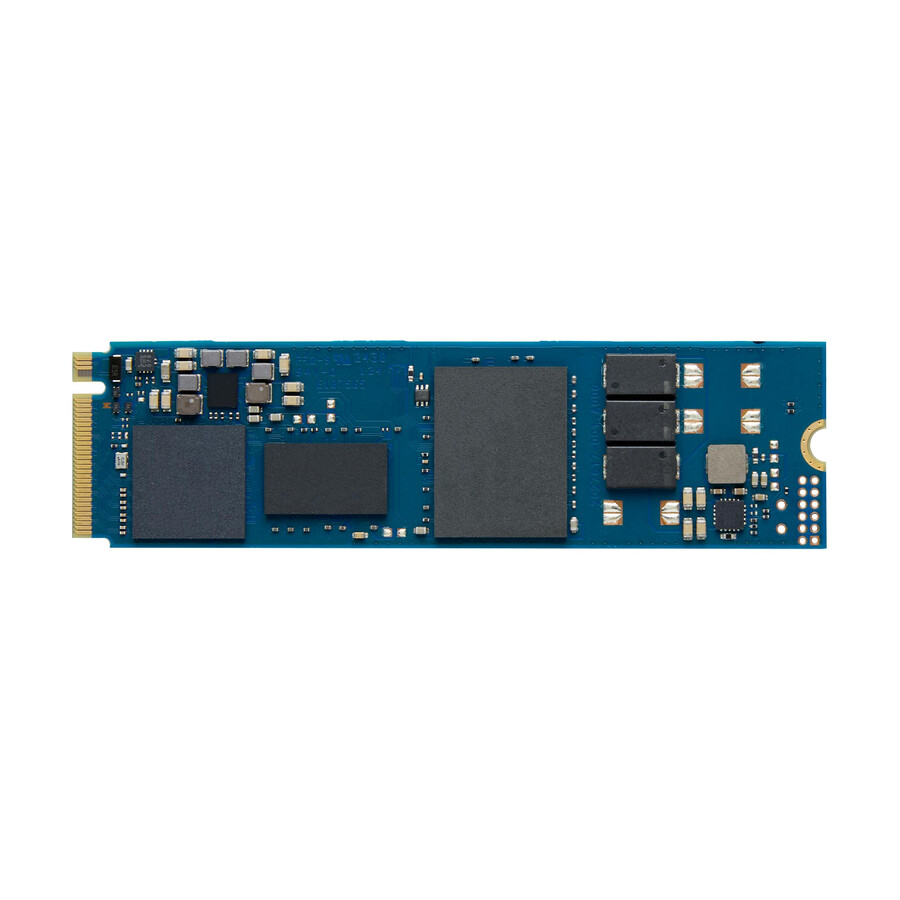

Non-heatsink
80mm x 22mm x 3.5mm Weight 240GB – 9g
480GB – 10g
960GB – 11g Vibration non-operating 20G peak (10-2,000Hz) MTBF 2 million hours Warranty/support{{Footnote.N52589}} Limited five-year warranty with free technical support
