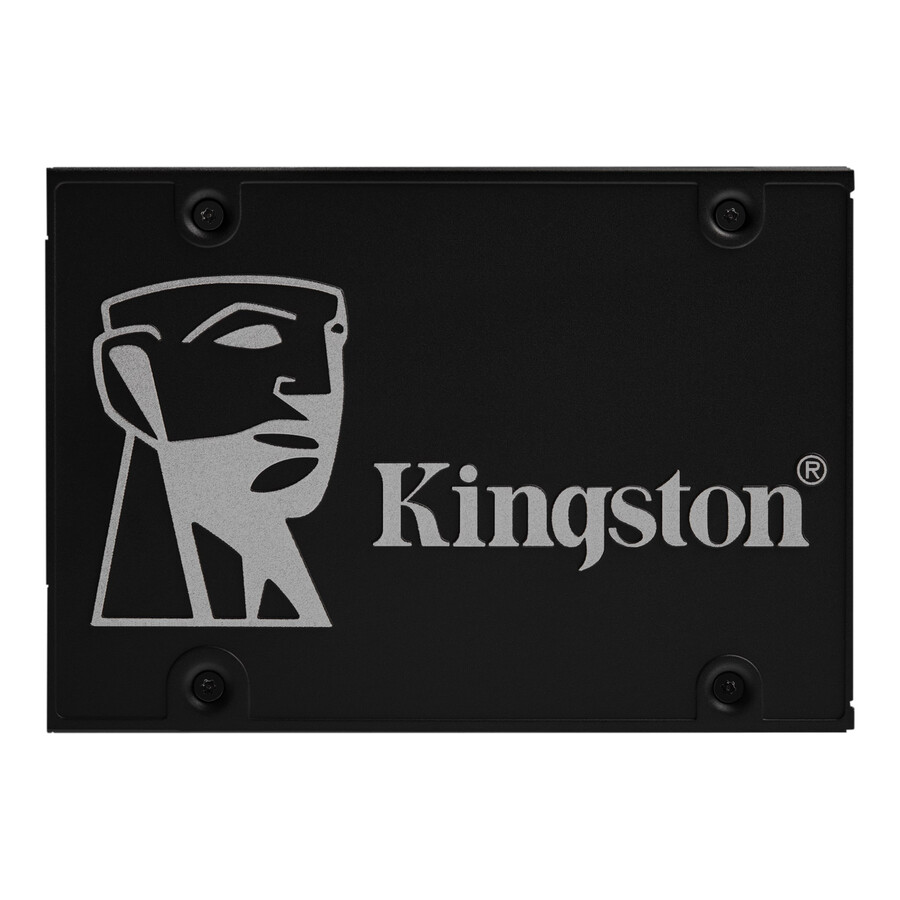

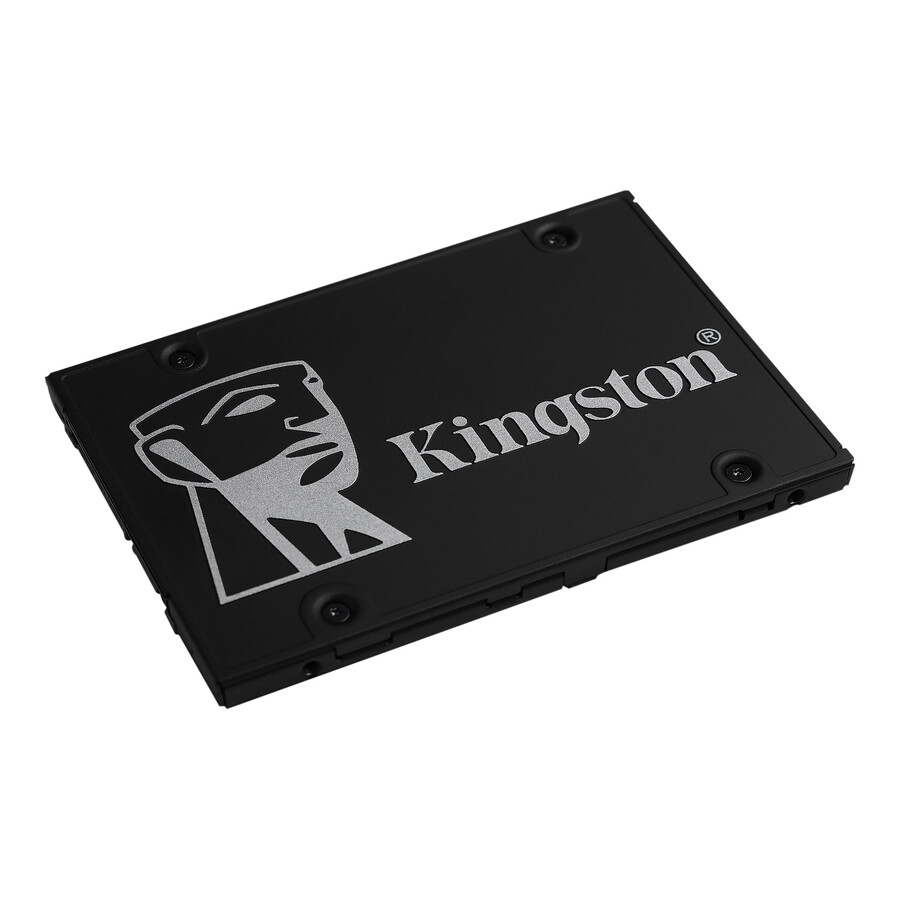

KC600 2.5″ and mSATA SSD – capacity=256GB form factor=2.5%22

Hardware-based self-encrypting drive with 3D TLC NAND

capacity=256GB
form factor=2.5%22

Form Factor 2.5″ Interface SATA Rev. 3.0 (6Gb/s) – with backwards capability to SATA Rev 2.0 (3Gb/s) Capacities{{Footnote.N37130}} 256GB, 512GB, 1024GB, 2048GB Controller SM2259 NAND 3D TLC DRAM Cache Yes Encrypted XTS-AES 256-bit encryption Sequential Read/Write{{Footnote.N39214}} 256GB — up to 550/500MB/s
512GB–2048GB — up to 550/520MB/s Maximum 4K Read/Write{{Footnote.N39214}} up to 90,000/80,000 IOPS Power Consumption 0.06W idle / 0.2W avg / 1.3W (MAX) read / 3.2W (MAX) write Dimensions 100.1mm x 69.85mm x 7mm Weight 40g Operating temperature 0°C~70°C Storage temperature -40°C~85°C Vibration operating 2.17G Peak (7-800Hz) Vibration non-operating 20G Peak (10-2000Hz) Life expectancy 2 millions hours MTBF Warranty/support{{Footnote.N48982}} Limited 5-year warranty with free technical support Total Bytes Written (TBW){{Footnote.N52588}} 256GB — 150TB
512GB — 300TB
1024GB — 600TB
2048GB — 1200TB
